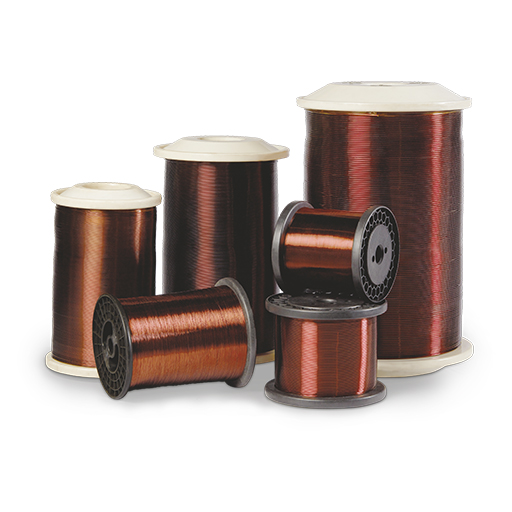

Enameled Copper Winding Wires/Magnet Wires
Magnet wire or Enameled wire is a copper wire coated with a very thin layer of insulation. We have different range of Enameled Copper Winding Wires coated with a layer of insulation and comes with good mechanical properties such as tensile strength, elongation etc.. The material is electrolytically refined copper and fully annealed to take maximum benefits of the customization in hermetic applications in Electrical Motors, Transformers, Switchgear, Consumer & Industrial Electronics, Auto Electrical, Refrigerators, Air Conditioners, Domestic Appliances, Pumps & Fans and more.
Product
SIZE RANGE
– |
Min. |
Max. |
SWG |
5 |
45 |
Size |
5.400 MM |
0.071 MM |
Grade |
1 |
3 |
INSULATION CLASS
– |
THERMAL CLASS |
SPECIFICATION |
Polyester |
130°C |
IS-13730-PART-34 |
Modifed Polyester |
155°C |
IS-13730-PART-O3 |
Polyestermide |
180°C |
IS-13730-PART-08 |
Dual Coated |
200/220°C |
IS-13730-PART-13 |
Self Solderable |
155°C & 180°C |
IS-13730-PART-20 |
APPLICATIONS
Elertrical Motors |
Auto Electrical |
Transformers |
Refrigerators |
Switchgear |
Air Conditioners |
Consumer |
Domestic Appliances |
Industrial Electronics |
Pumps & Fans |
PACKING DETAILS
PT 4, PT 10, PT 25, PT 45, PT 90, Pti80
& AS PER DIN STANDARDS |
Our Product
APPLICABLE SPECIFICATION / STANDARDS
IEC, DIN, IS, Other Relevent National
international / Customized Standard
